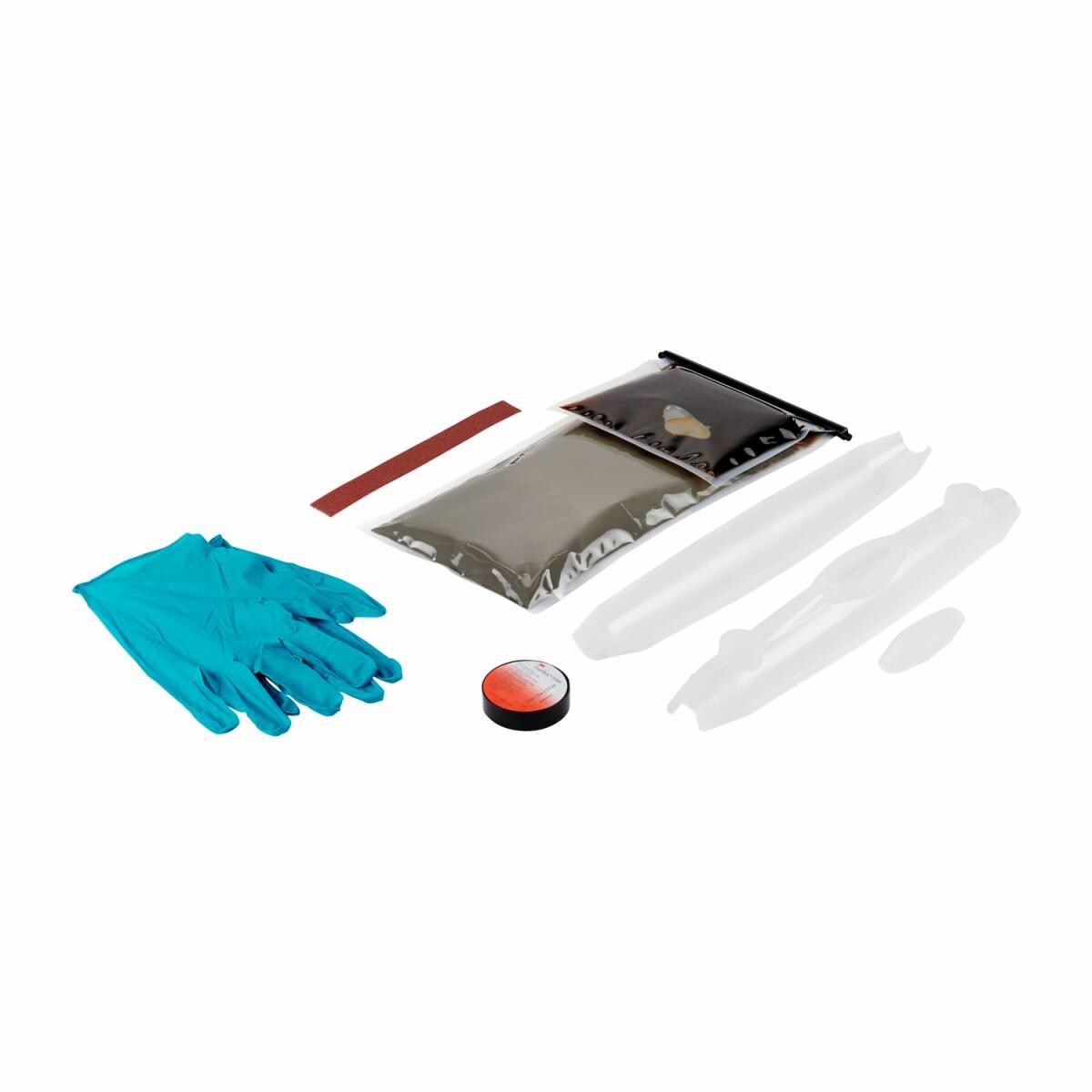

3M™ Scotchcast™ Resin kit Series 90-NA size A4
- 3M ID 7000035341
Details
Highlights
- Designed for use on non-shielded cables
- Insulates and seals wye splices for compression tap connectors
- Fits both split bolt and crimped conductors
- RoHS 2011/65/EU Compliant
3M™ Scotchcast™ Wye Resin Splice Kits are designed for insulating and sealing wye splices for compression tap connectors on power cables.
Insulates and seals wye splices for compression tap connectors (e.g., C tap or H tap) rated for cables up to 5 kV. Number of Conductors: 1 for 5 kV Multiple for 1 kV
Typical Properties
Related Products
| Voltage | 1 kV | |
| Maximum Insulation Outside Diameter | 47 Millimetre | |
| Minimum Insulation Outer Diameter (Metric) | 28 Millimeter | |
| Maximum Conductor Size | 95 mm² | |
| Minimum Conductor Size | 50 mm² | |
| Cable Type | multi core, polymeric insulated cable |
